Product Introduction

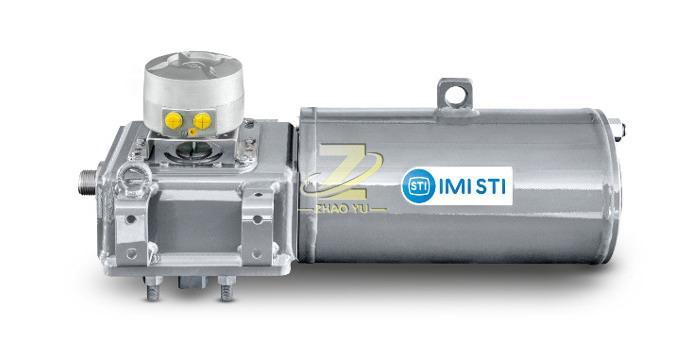

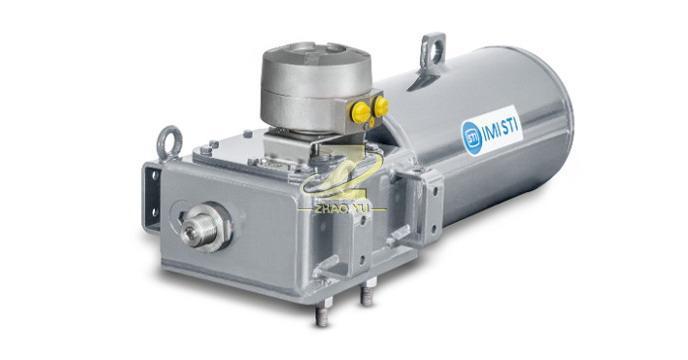

RTCH Series Compact angular stroke actuators are fork-type structures, which can be applied to all land and sea applications, covering most of the on-off and control valves. RTQH series design provides maximum reliability and flexibility.
Main features:
> Executing agencies comply with PED and ATTEX regulations.
> Dual-acting or spring reset module design.
> Protection level: IP66/IP67M according to IEC/EN 60529.
> The shell is made of carbon steel without casting/ductile iron or aluminium parts.
> Work pressure: up to 350 Bar.
> Working temperature: - 30 C ~ 100 C (low or high temperature can be customized as required).
> Output Torque: 40Nm to 6000Nm dual-acting version.
> The fork-pulling mechanism is divided into inclined fork and symmetrical fork.
> Spring terminal torque: single-acting version from 40Nm to 2500Nm.
> Standard supply medium: hydraulic oil (special version of fire fluid can be customized).
> Up to SIL3 requirements, as a "single device".
