Product Introduction

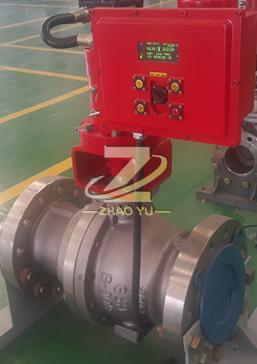

BALL VALVE
Standard Specifications
-
Item Spec Etc. Type Hydrauric MOV - Ball valve Body SSC13 Ball SCS13+STELLITE Stem SUS304 Seat Ring SUS431+P-CVD Cylinder Single / Double Pump 0.5CC ~ 2.0CC/rev. Water-proof IP 68 Out Torque 600N.m ~ 32,000N.m Actuator Size H:280mm, W:300mm, L:390mm All Model -
Dimensions
| size | Ød | FLANGE | L | ||||
|---|---|---|---|---|---|---|---|
| DIAMETER | ØD | Øg | PCD C | n | h | ||
|
50 - 2 WAY AVT-BA-2W-10K |
50 | 155 | - | 120 | 19 | 16 | 178 |
|
65 - 2 WAY AVT-BA-2W-10K |
65 | 175 | - | 140 | 19 | 16 | 190 |
Exterior Diagram
