Product Introduction

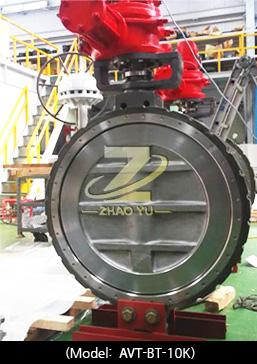

BUTTERFLY VALVE (AVT-BT-10K)
Standard Specifications
-
Item Spec Etc. Motor BLDC Motor 200W/400W - Power AC 220V 1Ph / AC 440V 3Ph - Pump Spec 0.5CC ~ 2.0CC - IN Signal 4mA ~ 20mA - Out Signal 4mA ~ 20mA - Out Torque 600N.m ~ 32,000N.m - Max. Pressure 135 kg/m2 - Water-proof IP 68 - Standard Color RED - Dememsion H:280mm, W:300mm, L:390mm All Model -
Dimensions
| size | Ød | FLANGE | H1 | H2 | L | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIAMETER | ØD | Øg | PCD C | n1 | n | h | N | T | ||||
| 1600 | 1600 | 2035 | - | 1820 | 8 | 32 | 49 | 40 | 58 | 1270 | 1078 | 310 |
Exterior Diagram
