Product Introduction
GLOBE & GATE VALVE
Standard Specifications
-
Item Spec Etc. Type Hydrauric MOV - Globe valve Body SCPH2 Disc SCPH2+13Cr. Stem SUS4410 Seat SCPH2 + STL Cylinder Single / Double Pump 0.5cc ~ 2.0cc/rev. Water-proof IP 68 Explosion ExdⅡCT6 Thrust 6,000N ~ 160,000N Actuator Size H:280mm, W:354mm, L:390mm All Model -
Dimensions
| Actuator Type | Valve Size | Pressure | Actuator Model | Hydraulic Cylinder | Operating Type | Actuator Torque(80Bar 일때) |
|---|---|---|---|---|---|---|
|
Hydraulic Linear Type |

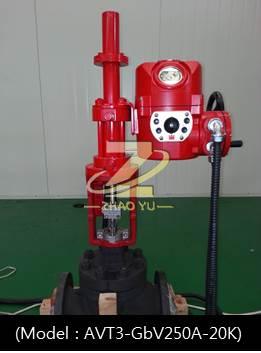

Globe 10"(250A) | JIS, 20K | AVT3-090 |
Double (HAC-12) |
ON/OFF | 7.5 Ton |
Exterior Diagram
